6 Key Factors to Consider When Choosing a Terminal Lug

Choosing the correct electrical components is critical for safety, efficiency, and system longevity. When it comes to secure cable termination, few components are as vital as the Terminal Lug. Whether you’re working on large-scale industrial projects or specialized battery installations, getting the selection right ensures a reliable connection that lasts. This comprehensive guide will walk you through the essential factors to consider so you can confidently select the best Lug for electrical connections.

What Is a Terminal Lug?

At its simplest, a Terminal Lug (often interchangeably called a Cable Lug) is a device used to connect a cable to a terminal point on an electrical device, such as a bus bar, another cable, a switch, or a piece of equipment. Its primary function is to provide a clean, secure, and permanent contact point, ensuring maximum conductivity and minimizing resistance and heat generation. A poorly chosen or incorrectly installed lug can lead to system failure or, worse, a fire hazard.

6 Key Factors to Consider When Choosing a Terminal Lug

Making the right choice for your electrical system requires considering several technical factors. Here are the 6 key elements that determine the proper Electrical terminal lug selection.

Determine Cable Size and Type

The first and most critical step is matching the lug to the cable. The lug’s barrel size must precisely fit the cable’s gauge (AWG or kcmil) to ensure a proper crimp.

• Cable Size: Always verify the actual diameter and stranding of your cable. A mismatch here leads to a weak connection and potential overheating.
• Cable Type: The lug material must be compatible with the conductor material. For instance, you would use a Copper lug for copper cables and an Aluminium lug (or a dual-rated lug) for aluminium conductors.

Choose the Right Material

The material of the Cable Lug directly impacts its performance and longevity.

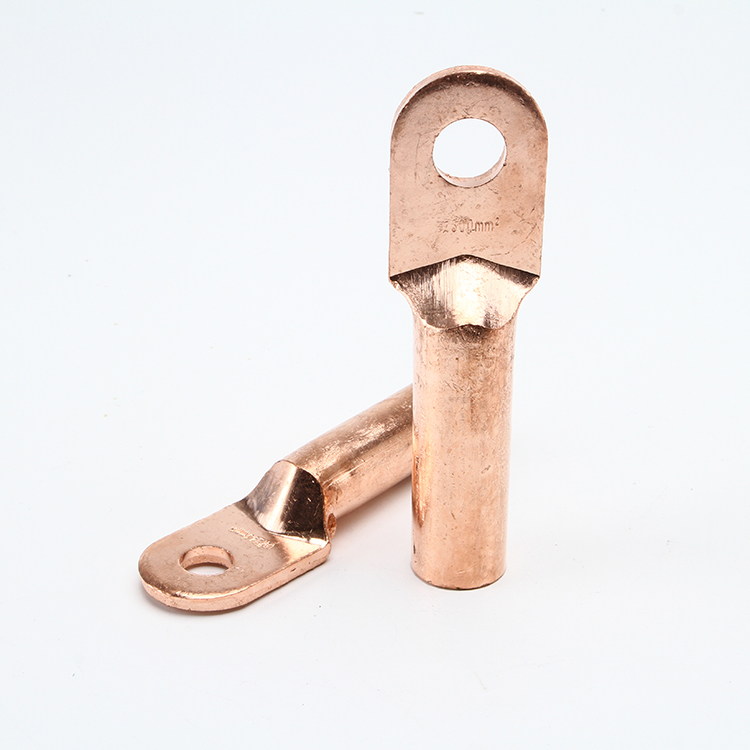

• Copper: Highly conductive and corrosion-resistant. Copper lugs are the preferred choice for most standard, high-current applications.
• Aluminum: Lighter and less expensive, Aluminium lugs are typically used with aluminium conductors. However, they require special consideration due to their greater rate of expansion and contraction.
• Bi-metallic: These lugs feature a copper body fused with an aluminium barrel, specifically designed for connecting aluminium conductors to copper terminals.

Select Proper Lug Type

Lugs come in various shapes and designs, each suited for a specific application.

• Ring/Fork Terminals: Standard terminals for bolted connections.
• Seamless Lugs: Ideal for high-vibration applications due to their stronger barrel design.
• Long-Barrel Lugs: Offer more surface area for the crimp, improving conductivity and mechanical strength—essential for high-stress connections.
• Specific Lugs: Specialized types include those for grounding, welding cables, or unique connections like a Battery terminal lug.

Check Plating or Coating

The finish on the lug is often as important as the base material, especially in demanding environments.

• Tin Plating: The most common plating for copper lugs. It improves conductivity, prevents oxidation (corrosion), and makes joining copper to aluminum components safer by reducing galvanic corrosion.
• Silver Plating: Used for extremely high-current or high-frequency applications where maximum conductivity is needed.

Consider Operating Environment

The surrounding conditions heavily influence the required specifications for your Terminal Lug.

• Moisture/Corrosion: For outdoor, marine, or chemical environments, choose tin-plated or heavily insulated lugs to prevent degradation.
• Temperature: High-temperature environments require lugs made from materials designed to maintain their structural and electrical integrity under extreme heat.
• Vibration: Systems subject to constant movement (e.g., transportation, large machinery) need heavy-duty, seamless lugs to prevent connection failure.

Verify Standards and Certifications

Safety and performance are non-negotiable. Always ensure your chosen lug adheres to recognized industry standards.

• UL Listed: Certification from Underwriters Laboratories signifies the product meets rigorous safety standards.
• CSA Certified: For projects in North America, this confirms compliance with Canadian Standards Association requirements.
• RoHS Compliant: Important for international sales, certifying that the product is free from hazardous substances.

Common Mistakes to Avoid

When learning How to Choose Terminal Lug, be sure to sidestep these common pitfalls:

• Mismatched Material: Using a standard copper lug on an aluminium cable (or vice versa) without a proper bi-metallic solution causes galvanic corrosion and rapid failure.
• Incorrect Crimping Tool: Using a non-specified or low-quality crimping tool leads to a poor mechanical and electrical connection, which is the leading cause of lug failure.
• Oversizing/Undersizing: A lug that is too large or too small for the cable won’t achieve a secure crimp, compromising conductivity and pull-out strength.

Benefits of Choosing the Right Terminal Lug

Selecting the right component is an investment that pays off in numerous ways. A properly specified Electrical terminal lug selection ensures:

1. Safety: Minimized risk of fire or equipment damage due to overheating.
2. Efficiency: Low resistance connections ensure maximum power transfer.
3. Longevity: Components resist corrosion and mechanical stress, reducing maintenance and replacement costs.

FAQs

Can I use the same lug for copper and aluminum cables?

No. You should never use a standard copper lug for an aluminum cable, or vice versa, due to the high risk of galvanic corrosion. Always use a dedicated Aluminium lug for aluminium cables, a Copper lug for copper cables, or a specialized bi-metallic lug when connecting the two different materials together.

How do I know what size lug I need?

The size of the lug must directly correspond to the cable’s gauge (AWG/kcmil). This information is usually printed on the cable jacket. You need to match the lug’s barrel size to the cable size and its stud hole size to the terminal’s bolt size.

Is plating important for lugs?

Yes, absolutely. Plating, such as tin or silver, is vital for preventing the base metal from oxidizing (corroding) when exposed to air and moisture, which would otherwise increase resistance and cause overheating.

What is the difference between a cable lug and a terminal lug?

The terms Cable Lug and Terminal Lug are generally used interchangeably and refer to the same component that terminates a cable for connection to a terminal.

Conclusion

The reliability of your electrical system is only as strong as its weakest connection. By meticulously considering the six key factors—cable size, material, lug type, plating, environment, and certification—you ensure every termination is safe, robust, and performs optimally. Making an informed choice when selecting your Lug for electrical connections is critical to project success.

Ready to secure the highest-quality connections for your next project? Explore the extensive range of certified Terminal Lug products, including specialized Battery terminal lug and industrial options, Contact ENVI.
