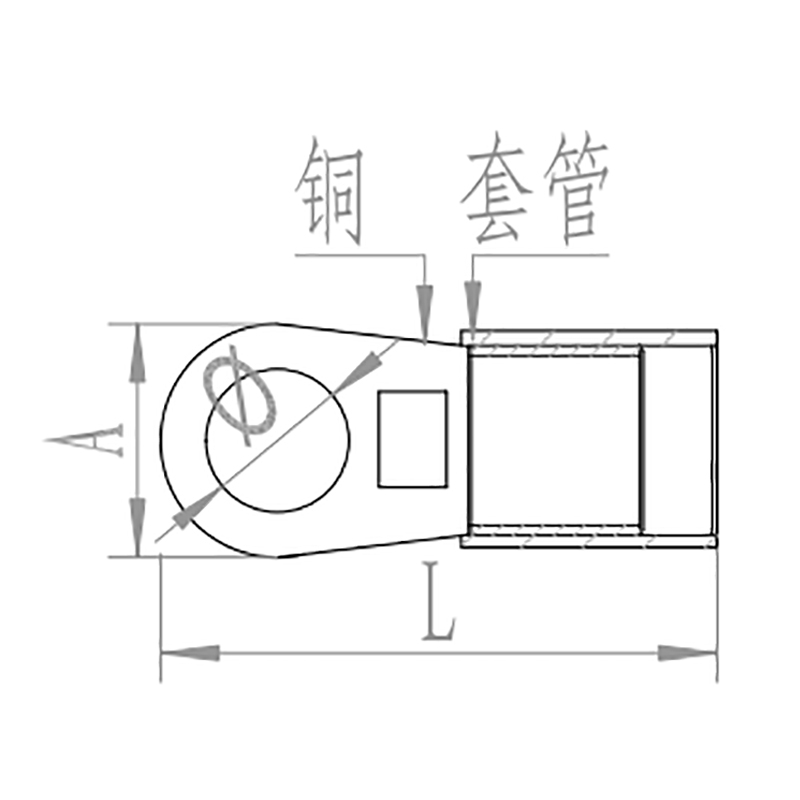

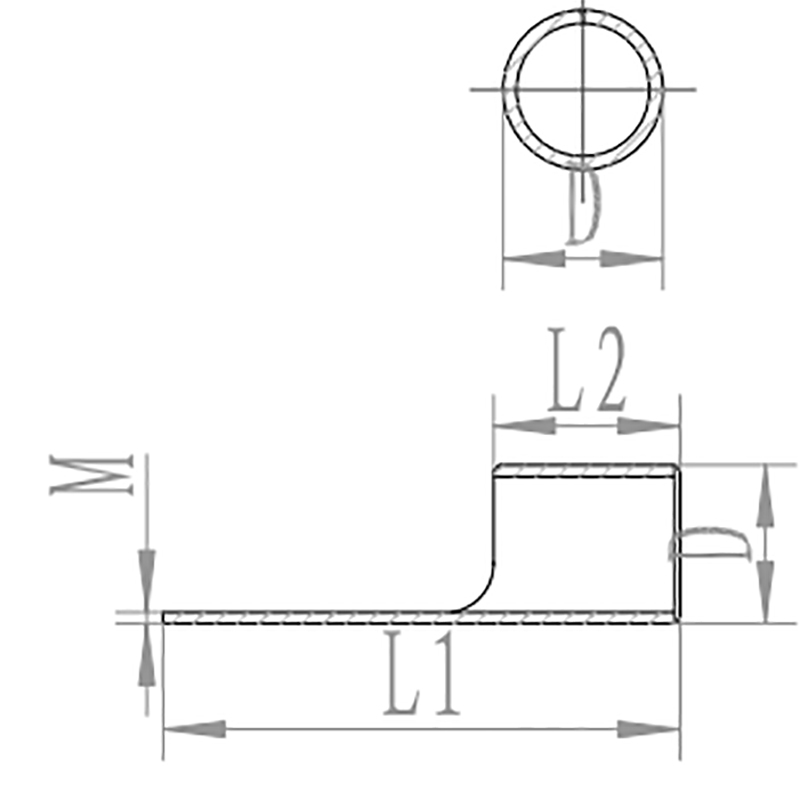

| Catalog | 主要尺寸Dimensions(mm) | ||||||
| No | Ø | A | M | D | L1 | L2 | L |
| 12.5-3 | 3.3 | 5.6 | 0.55 | 3.1 | 11.6 | 4 | 18 |
| 1.25-4 | 4.3 | 6.6 | 0.55 | 3.1 | 13.6 | 4 | 20 |
| 1.25-5 | 5.3 | 8 | 0.55 | 3.1 | 14.5 | 4 | 21 |
| 1.25-6 | 6.5 | 11.6 | 0.55 | 3.1 | 19.5 | 4 | 25 |
| 1.25-8 | 8.5 | 11.6 | 0.55 | 3.1 | 19.5 | 4 | 26 |
| 2-3 | 3.3 | 6 | 0.55 | 3.7 | 12.3 | C | 18 |
| 2.4 | 4.3 | 6.6 | 0.55 | 3.7 | 13.8 | 5 | 20 |
| 2.5 | 5.3 | 8.5 | 0.55 | 3.7 | 15.5 | C | 22 |
| 2-6 | 6.5 | 11.6 | 0.55 | 3.7 | 19.2 | C | 26 |
| 3.5-4 | 4.3 | 7.9 | 0.65 | 4.7 | 16.2 | 6.2 | 24 |
| 3.5-5 | 5.3 | 7.9 | 0.65 | 4.7 | 16.2 | 6.2 | 25 |
| 3.5-6 | 6.5 | 11.6 | 0.65 | 4.7 | 19.4 | 6.2 | 28 |
| 3.5-8 | 8.5 | 14.3 | 0.65 | 4.7 | 25.1 | 6.2 | 34 |
| 5.5-4 | 4.3 | 7.2 | 0.75 | 5.2 | 15 | 6.6 | 23 |
| 5.5-5 | 5.3 | 9.5 | 0.75 | 5.2 | 15 | 6.6 | 26 |
| 5.5-6 | 6.5 | 11.6 | 0.75 | 5.2 | 19.8 | 6.6 | 27 |
| 5.5-8 | 8.5 | 14.8 | 0.75 | 5.2 | 26.1 | 6.6 | 34 |
