In the world of electrical systems, making secure and reliable connections is not just a matter of convenience—it’s a critical safety and performance requirement. If you’re responsible for procuring or installing electrical components, you understand that system integrity depends on every single part. That’s why understanding the Terminal Lug is essential. This guide dives deep into this foundational component, giving you the detailed knowledge you need to make informed purchasing decisions for your operations.

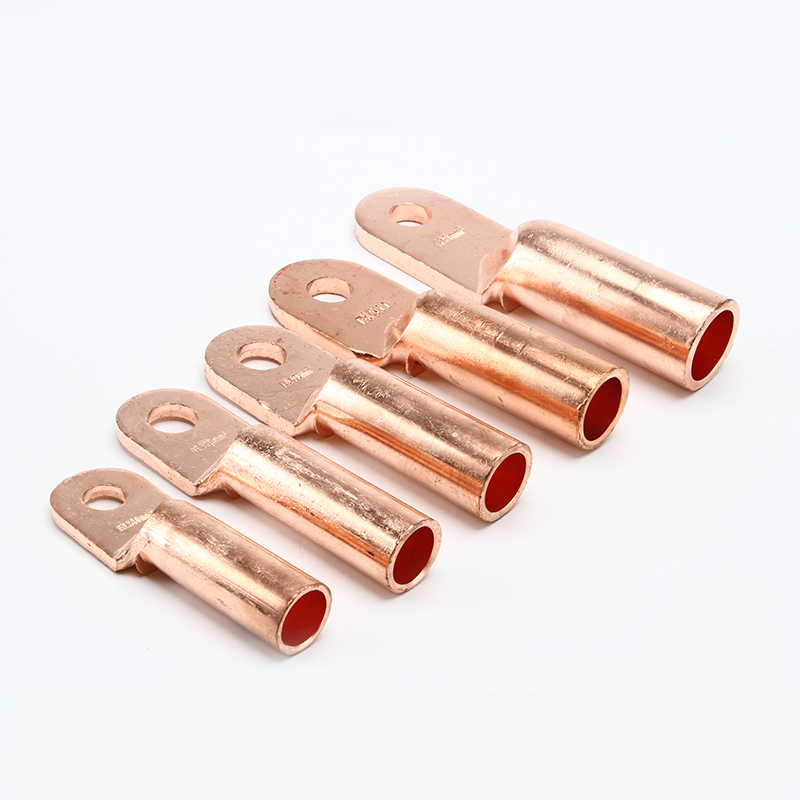

At its simplest, a Terminal Lug is a specialized type of electrical connector designed to connect a power or grounding cable to an electrical device, such as a circuit breaker, bus bar, or piece of equipment. Often used interchangeably with the term Cable Lug, it acts as a mechanical transition piece, enabling a secure, durable, and low-resistance connection between the flexible strands of a conductor and a rigid termination point.
Crucially, the terminal lug definition highlights its role in standardizing the connection interface. It typically features a barrel (for accepting the wire) and a palm or tongue (for securing to the device via a bolt or screw). When you hear terms like electrical terminal lug or electrical wiring lug, they all refer to this indispensable component that guarantees the integrity of your electrical circuit.
The primary lug functions go far beyond simply holding two parts together. They are engineered to solve core electrical challenges:
| Function | Core Role | Why It Matters To You |
| Optimal Conductivity | Minimizes electrical resistance. | Reduces heat generation, preventing system failure and energy loss. |
| Mechanical Strength | Creates a permanent, crimped bond. | Withstands vibration and tension, ensuring connection security and reliability. |
| Standardization | Conforms to industry hole sizes (NEMA). | Facilitates consistent, easy connection to diverse equipment across manufacturers. |
| Corrosion Protection | Utilizes tin or other protective plating. | Extends the component’s lifespan, especially in harsh or outdoor industrial environments. |
| Safety & Compliance | Mandates proper installation (crimping). | Ensures reliable overcurrent protection and meets essential electrical codes. |
The lug material, often high-grade copper or aluminum, ensures minimal electrical resistance. This prevents excessive heat generation at the connection point, which is a major cause of system failure and energy loss.
A properly crimped cable lug creates a strong, permanent mechanical bond between the wire and the lug. This bond can withstand vibrations, tension, and environmental stresses without compromising the electrical pathway.
The lug’s palm is designed to specific hole sizes and spacing (NEMA standards), making it easier for you to connect cables to various equipment across different manufacturers with consistent results.
Many high-quality lugs feature plating, such as tin, to protect the base metal from oxidation and corrosion, especially in harsh industrial or outdoor environments, thus extending the lifespan of the lug for electrical connections.
Using a proper terminal connector and installation method (crimping) is required by many electrical safety codes and standards to ensure reliable overcurrent protection and grounding.
Terminal Lugs are ubiquitous across various industries and electrical infrastructure due to their necessity in creating high-current, secure connections. If your business involves any large-scale power or grounding systems, you are utilizing them.
Choosing the correct lug is paramount. Using an undersized, poorly manufactured, or incorrect material lug can lead to catastrophic failure. When you select the right product, you unlock significant benefits for your operations:
While often used interchangeably, a terminal lug is a specific type of cable connector. Lugs are specifically designed to connect a conductor to a terminal point (like a bus bar or switchgear pad). General cable connectors might include splices (to join two wires), quick disconnects, or even wire nuts. Essentially, all lugs are connectors, but not all connectors are lugs.
They are vital because they reliably and safely transition between the fine strands of a flexible cable and the rigid mounting point. Without them, a direct wire connection would be prone to oxidation, loosening, and catastrophic heat buildup due to poor surface contact and mechanical instability.
Generally, no. Once a lug has been properly crimped onto a cable, the metal in the barrel has been permanently deformed to achieve a gas-tight electrical and mechanical seal. Cutting the cable or trying to reuse the lug compromises this integrity, making it unsafe for reinstallation.
The most common materials are high-conductivity copper (for general power and grounding) and aluminum (primarily for terminating aluminum conductors in high-voltage applications). Many copper lugs are then tin-plated to prevent oxidation and improve connection stability.
You need a reliable supplier that adheres to strict manufacturing and material standards. Look for a vendor that provides certified products for demanding industrial and commercial applications.
The Terminal Lug is small in size but colossal in importance, serving as a critical bottleneck for current flow and system safety. By prioritizing certified, high-quality electrical terminal lugs for your applications, you ensure the longevity, efficiency, and compliance of your entire electrical infrastructure. Choosing the right component is a strategic business decision, not just a procurement detail.
Ready to secure your electrical systems with superior components? ENVI specializes in providing a complete range of certified cable lugs and terminal connectors built for industrial performance and reliability. Explore our full catalog and connect with our technical sales team for bulk ordering solutions today.
