Whether it’s the power plugs we plug and unplug daily or the thick copper terminals inside distribution boxes, if you look closely, you’ll notice that all their edges and corners are designed with smooth curves—almost no sharp right angles.
This seemingly trivial design conceals profound engineering wisdom and physical principles. It’s not about “aesthetics” at all, but a meticulous calculation for “safety,” “performance,” and “lifespan.”
First, let’s introduce today’s protagonist: a core principle in electrical engineering — tip discharge.
Simply put, when a conductor carries high voltage, electric charges densely cluster on its surface. These charges exhibit a peculiar tendency: they gravitate toward areas of high curvature—namely, sharp points.
Imagine a crowd (charges) dispersing across a square (conductor surface). If a prominent watchtower (tip) rises from the square, people inevitably crowd toward its apex, creating abnormal congestion.
This overcrowding at the tip causes the surrounding electric field strength to surge dramatically. When the field becomes strong enough to ionize nearby air molecules (splitting them into positive ions and electrons), corona discharge or even spark discharge occurs. Think of it as the charges being “squeezed” off the sharp edge.
Energy loss: Continuous discharge consumes electrical energy. For long-distance transmission or high-precision equipment, this invisible loss must be avoided.
Electromagnetic interference: Discharges generate high-frequency electromagnetic waves that severely disrupt nearby radio equipment, communication signals, and the normal operation of precision electronic instruments.
Insulation damage: Long-term discharges produce ozone and nitrogen oxides, chemicals that corrode surrounding insulation materials. Over time, this leads to insulation aging, breakdown, and short circuits.
Safety hazards: In flammable or explosive environments, electrical sparks serve as lethal ignition sources for hazardous gases.
The rounded arc design is the natural enemy of sharp-pointed discharges. Its smooth curves enable charge to distribute evenly across the entire conductor surface, preventing excessive electric field strength in localized areas and fundamentally suppressing discharge phenomena.

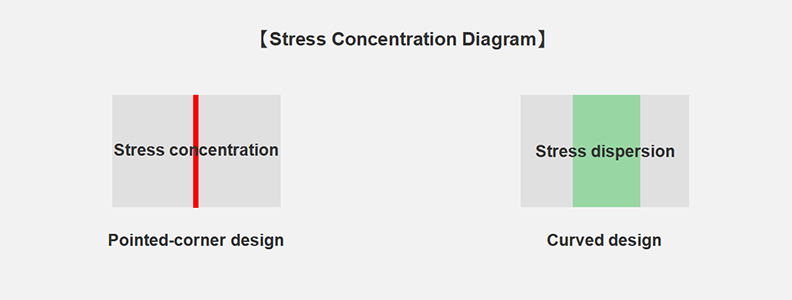

In engineering mechanics, sharp right angles act as stress concentration points. When terminals are tightened by screws, subjected to external pulling forces, or experience vibration, stress concentrates at those 90-degree corners—much like how tearing paper starts with a small tear at the edge.
This stress concentration point is highly susceptible to metal fatigue, developing micro-cracks that eventually lead to fracture. In contrast, a smooth arc distributes stress evenly across a larger area, significantly enhancing the terminal’s mechanical strength and fatigue resistance, making it more durable and reliable.

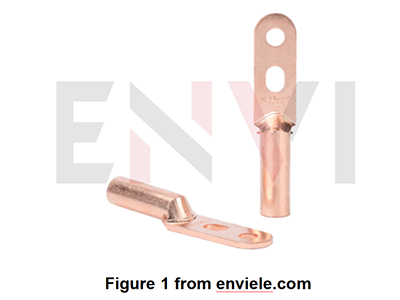

As shown in Figure 1 on the left, this close-up image of a DTS dual-hole cable terminal provides an excellent physical example. The terminal’s head features a broad, smooth arc. This curved “shoulder” is no arbitrary design—it is crucial for force transmission. When screws are tightened or cables experience tension, stress is uniformly transferred from the cable to the terminal and effectively dispersed through this curved zone. This prevents stress concentration at sharp corners, significantly improving the terminal’s fatigue resistance and long-term reliability.
Whether installers work barehanded or cables traverse confined spaces, terminals with sharp edges act like small knives, easily cutting hands or abrading cable insulation. Damaged insulation risks leakage or short circuits.
Rounded edges substantially enhance product safety, protecting both operators and cables.
While the “skin effect” is less pronounced in power-frequency AC, high-frequency AC or pulsed currents tend to flow near the conductor surface. A smooth, continuous curved surface provides a more efficient, low-resistance path for current flow. This reduces additional impedance and heat generation, enhancing electrical conductivity.
Once you grasp the “avoid sharp edges” principle, you’ll find it permeates every corner of the electrical world:
High-voltage transmission towers: Why are the wires thin, yet the insulators are a series of large “discs”? This design uses multiple smooth discs to “lengthen” the creepage distance, preventing discharge pathways from forming under high voltage.
Lightning rods: Wait, isn’t that a “sharp point”? Exactly—lightning rods actively exploit the sharp-point discharge principle to draw lightning currents toward themselves, protecting surrounding structures. They are an exception, not a contradiction.
Mobile phones and laptops: Sharp angles are avoided in casings, internal circuit boards, and any areas handling high voltage or high-frequency signals.

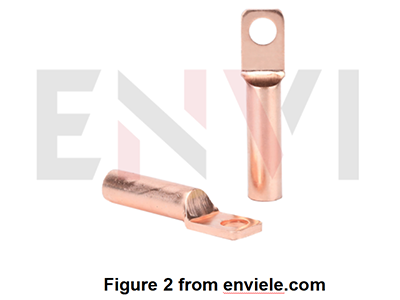

DT Square Cable Terminals: As shown in Figure 2 on the left, the corners of this terminal are not perfectly right angles but feature rounded edges with a slight curvature. This design specifically avoids sharp-edge discharge. Replacing sharp corners with rounded edges significantly smooths the electric field distribution, preventing excessive charge concentration at acute angles and effectively suppressing corona discharge. It’s akin to rounding the tip of a needle, making it less likely to puncture objects.
So next time you pick up a seemingly ordinary terminal block, remember that its unassuming rounded edges embody a trinity of ingenuity:
Physically,it calms the electric field and tames charge (preventing corona discharge).
Mechanically, it withstands pressure and extends longevity (preventing breakage).
Human-centered design:It offers gentle care, safeguarding safety (cutting prevention).
This small curvature perfectly embodies the engineering principle that “details determine success or failure.” It resolves complex and hazardous issues through the most concise and elegant means, ensuring electricity serves us more safely, efficiently, and reliably.
